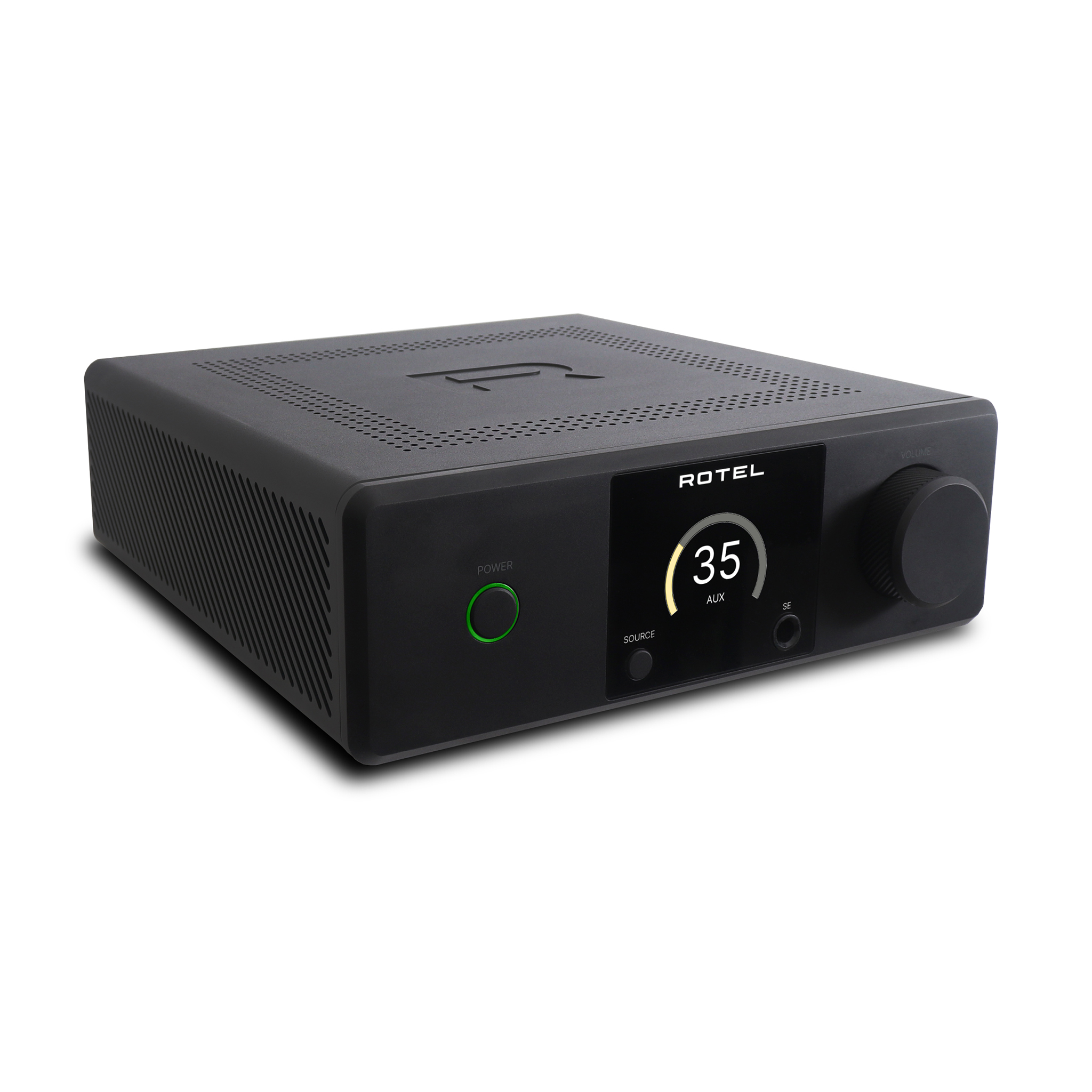

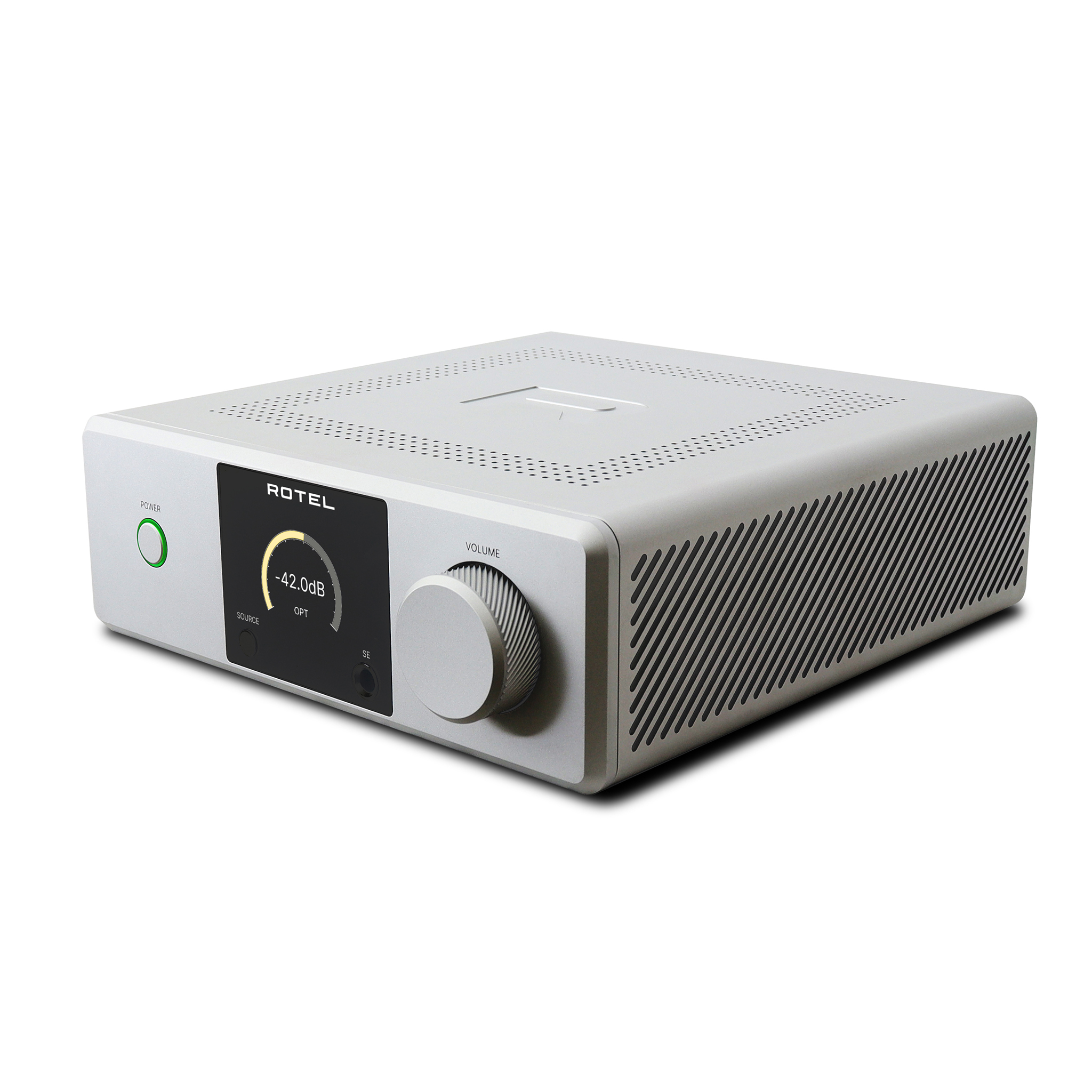

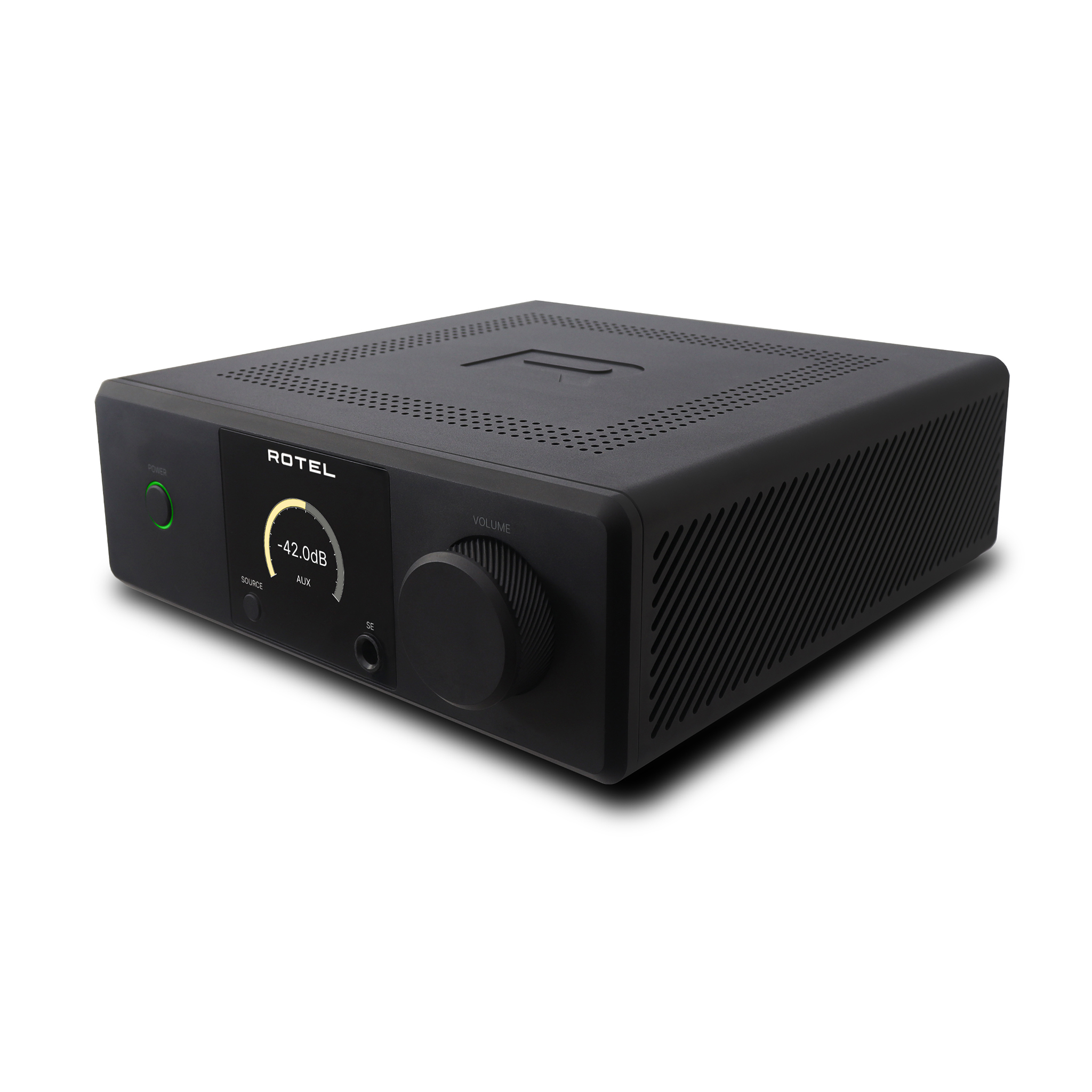

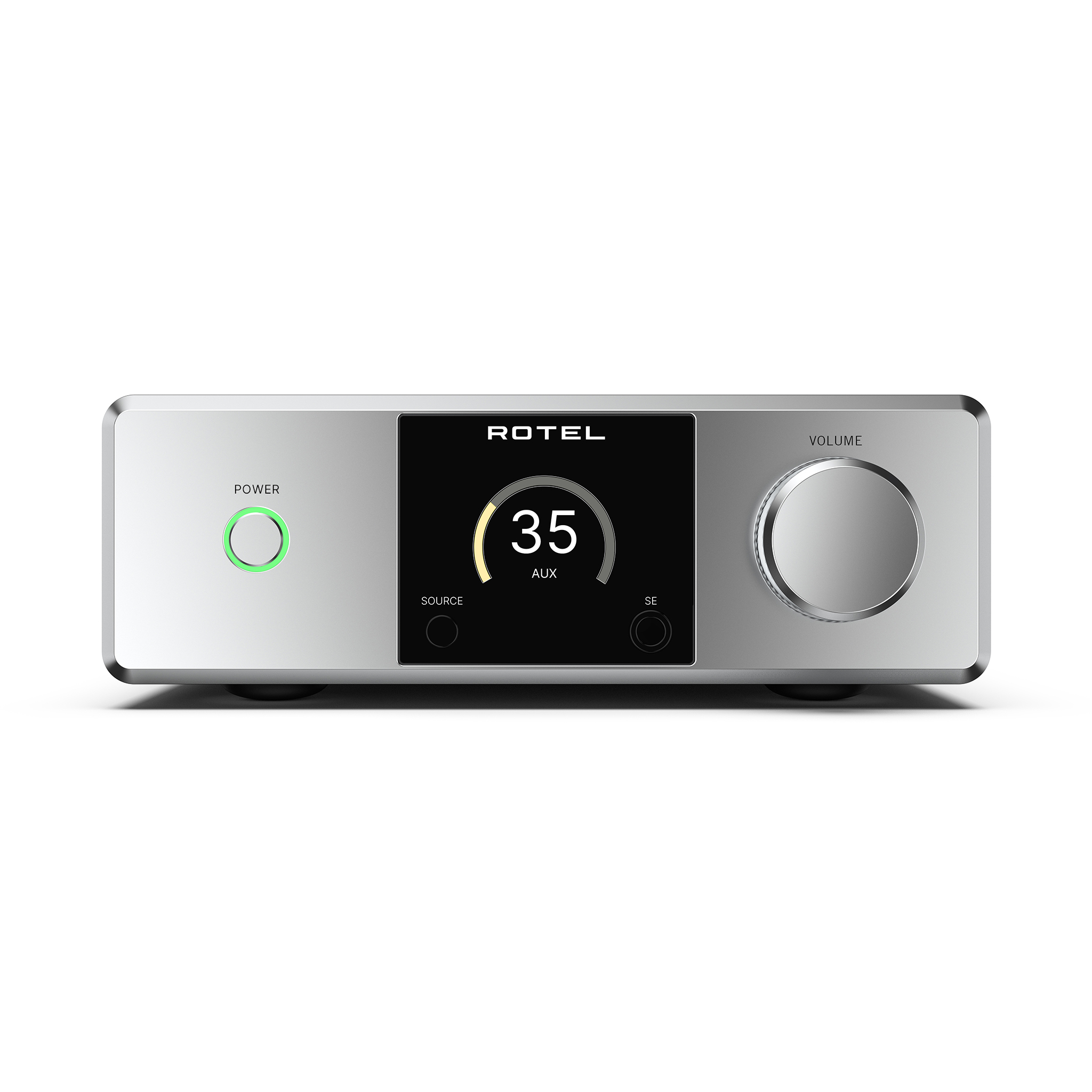

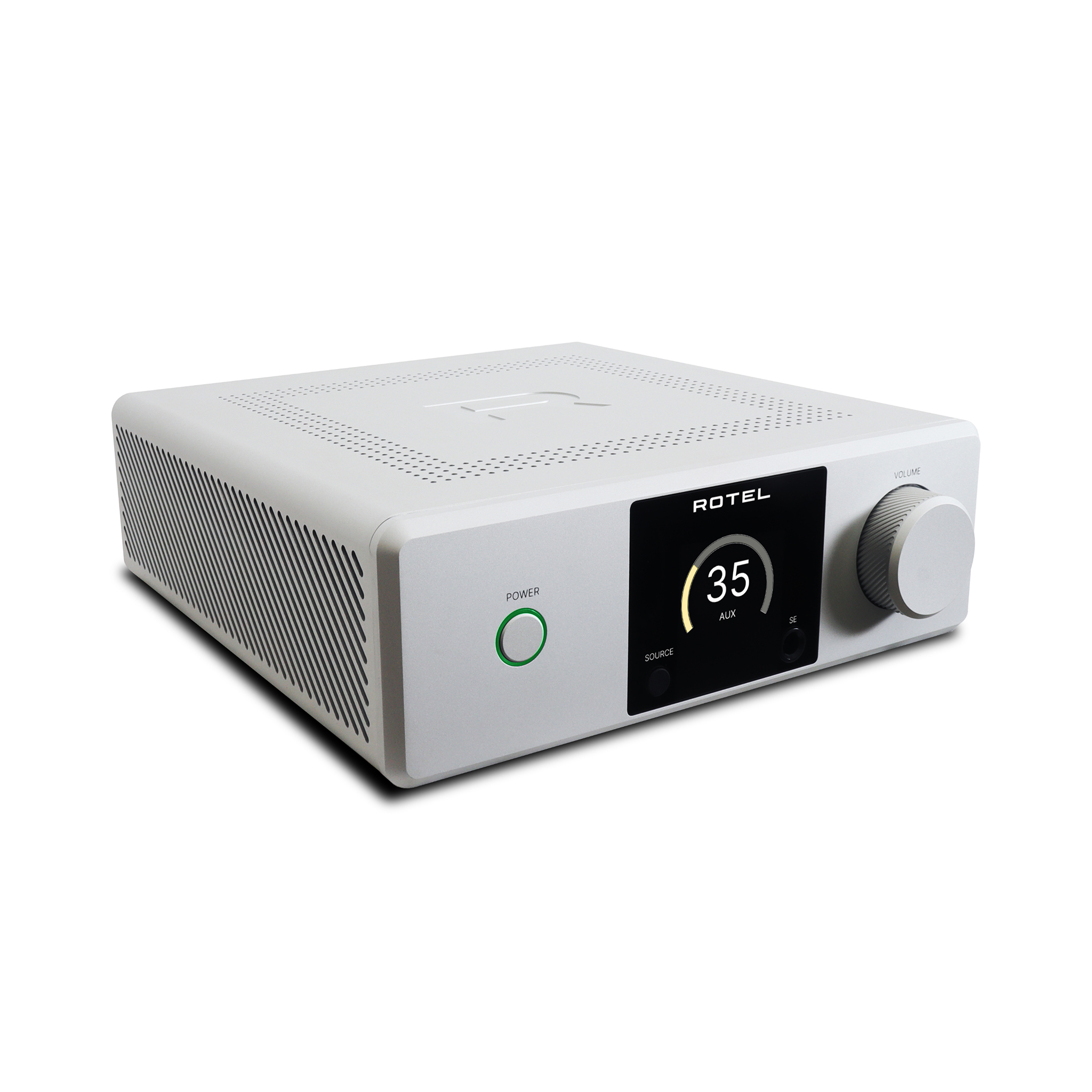

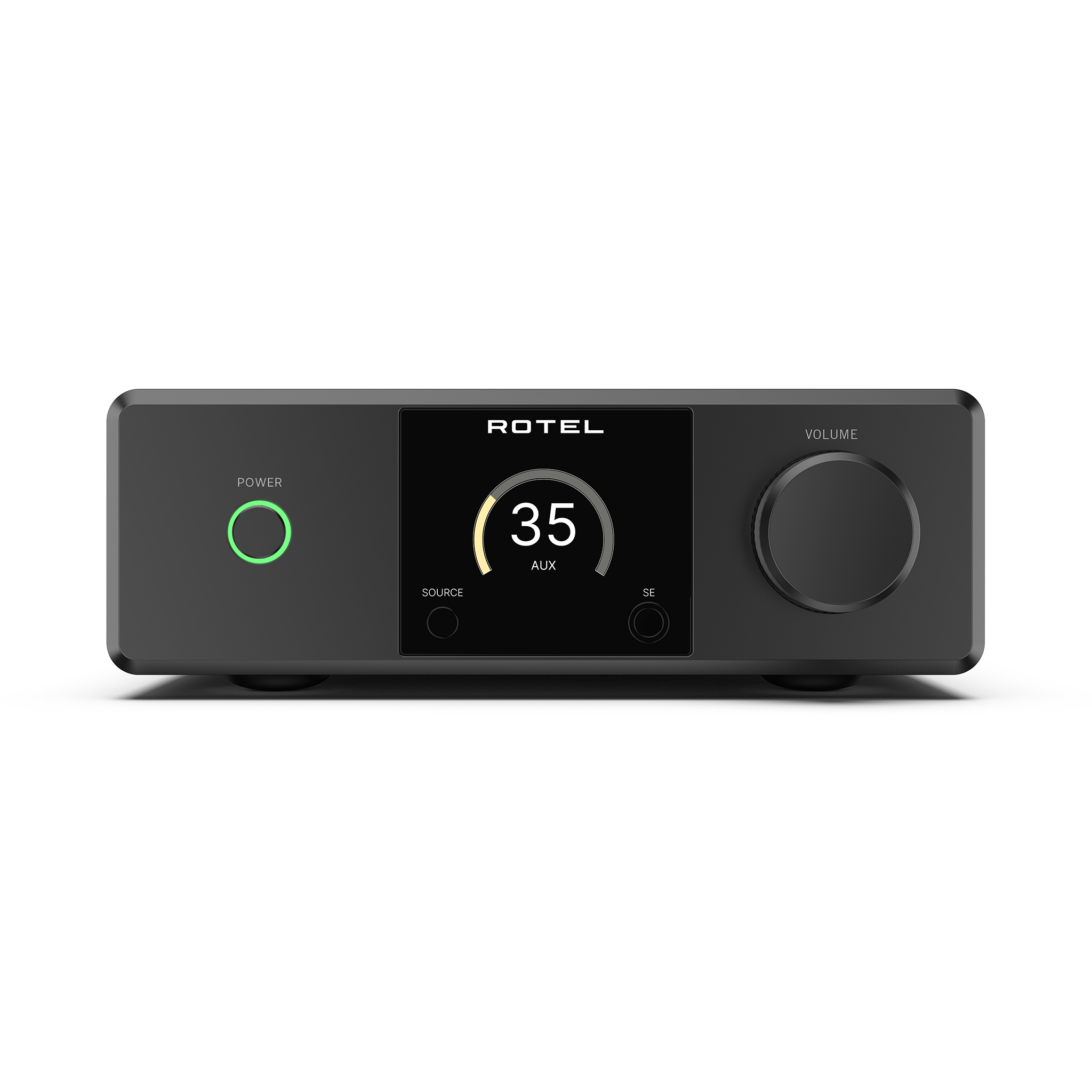

Rotel DX-5 Integrated Amplifier

The Rotel DX-5 is the ultimate high-performance Personal Audio Integrated Amplifier packaged in a sleek, modern, elegant industrial design.

Engineered with passion and driven by a precision Class AB amplifier, the DX-5 is powered by an in-house wound high-current toroidal transformer delivering 33 watts per channel into 4 ohms (25 watts into 8 ohms). The premium ESS ES9039Q2M DAC renders the audio with precision and exceptional sound quality on an expansive sound stage. It supports PC-USB (32-bit/384kHz PCM, DSD 4x), Coaxial/Optical (24-bit/192kHz), aptXTM HD and AAC Wireless Bluetooth, legacy RCA analog, and HDMI ARC connectivity with a subwoofer output. The DX-5 also features a full-color TFT display, 1/4” (6.35mm) headphone jack, and includes an intuitive remote control.

The Rotel DX-5 is the perfect combination of power, performance, and style, making it an excellent choice for music lovers and home entertainment enthusiasts alike.

SKU: DX5
Brand: Rotel
*
Price:

The Rotel DX-5 is the ultimate high-performance Personal Audio Integrated Amplifier packaged in a sleek, modern, elegant industrial design.

Engineered with passion and driven by a precision Class AB amplifier, the DX-5 is powered by an in-house wound high-current toroidal transformer delivering 33 watts per channel into 4 ohms (25 watts into 8 ohms). The premium ESS ES9039Q2M DAC renders the audio with precision and exceptional sound quality on an expansive sound stage. It supports PC-USB (32-bit/384kHz PCM, DSD 4x), Coaxial/Optical (24-bit/192kHz), aptXTM HD and AAC Wireless Bluetooth, legacy RCA analog, and HDMI ARC connectivity with a subwoofer output. The DX-5 also features a full-color TFT display, 1/4” (6.35mm) headphone jack, and includes an intuitive remote control.

The Rotel DX-5 is the perfect combination of power, performance, and style, making it an excellent choice for music lovers and home entertainment enthusiasts alike.

Products specifications
Product Type Amplifier
Power Handling N/A
X-Way N/A
Frequency Response Analog: 10 Hz - 100 kHz, Digital: 10 Hz - 80 kHz
Sensitivity Analog: 680 mV, Digital: -10.3 dBFS
Impedence Analog: 100k Ohms, Digital: 75 Ohms
Diameter N/A
Cut-Out Dimension N/A
Bracket N/A
Length 8.50"
Width 10.00"
Height 3.00"
Weight 8.20lbs
Tweeter Type N/A
Tweeter Size N/A
Midrange Type N/A
Midrange Size N/A
Woofer Type N/A
Woofer Size N/A
Bass Alignment N/A
Finish Black, Silver
*
*
*
